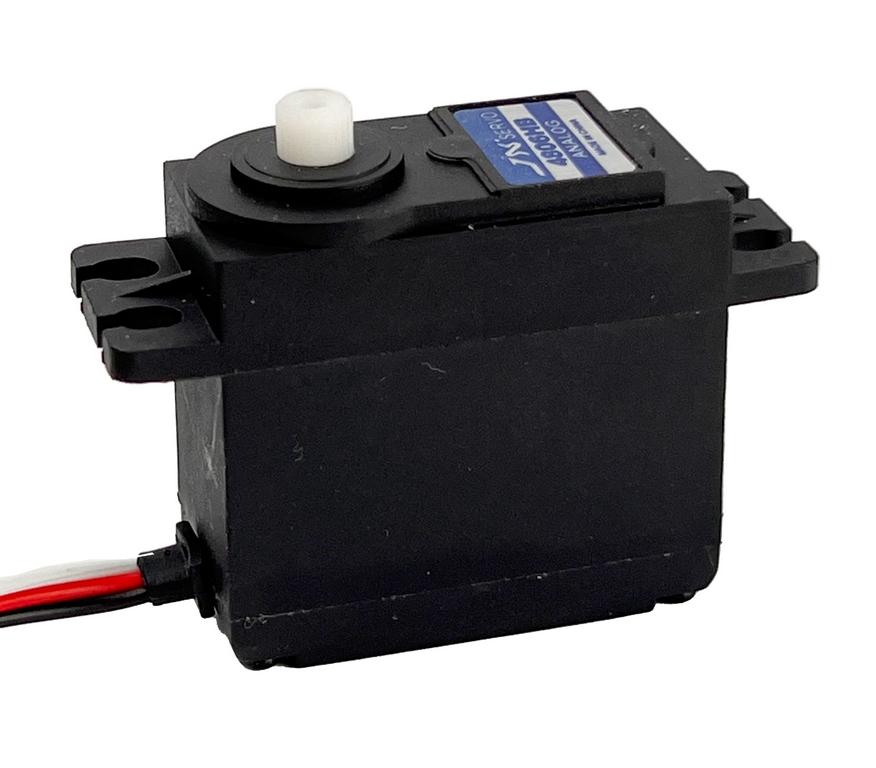

JX Servo 6.21Kg .12 sec 6V 48.5g 40.5x20.2x38 mm Std

JX Servo 6.21Kg .12 sec 6V 48.5g 40.5x20.2x38 mm Std

By JX SERVO
Sold out
$13.99
SKU JX4806
Add to Wishlist

Notify me when back in stock

PS-4806HB 6KG Plastic Gear Analog Standard Servo

 SPECIFICATIONS:
Dead band:7μs
Working frequence: 1520μs / 50hz
Operating Speed (4.8V): 0.14sec/60°
Operating Speed (6V): 0.12 sec/60°
Stall Torque (4.8V): 5.56kg.cm (72.23oz/in)
Stall Torque (6V):  6.21 kg-cm (86.26 oz/in)
Dimensions:  40.5X20.3X38mm /1.59X0.80X1.49 in
Weight:  48.5 g (1.71oz)
Connector Wire Length: JR  265 mm (10.43in)
